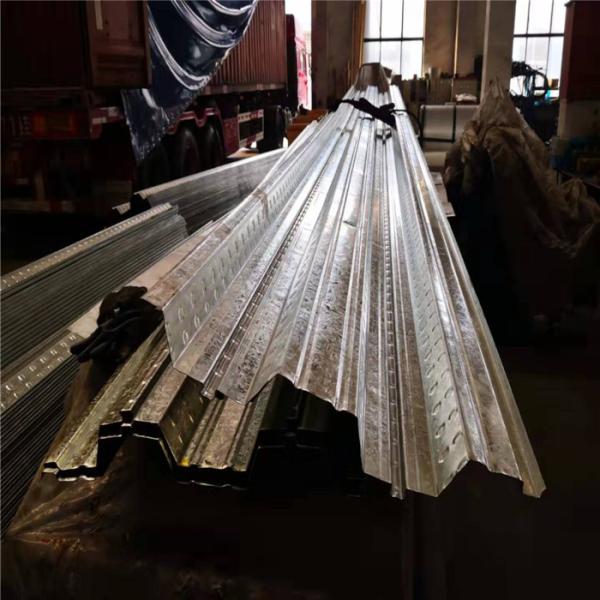

ComFlor 60 series composite floor profile equv. offers the ultimate in lightweight steel decking for all multi-rise buildings. It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that is easy to install. The state-of-the-art profile has been developed using modern roll-forming techniques. Capable of unpropped continuous spans to 4.5 metres and propped spans to 6.8 metres.
ComFlor 60 equivalent profile has been much copied but never bettered, as the original new generation round shouldered trapezoidal combined 60mm profile. This design is exceptionally resistant to compressive buckling resulting in superior span capability compared to traditional decks.
Long span and versatile. Low concrete and steel usage. Central stud placement. Closed ends. Better for Health and Safety.
Specifications:
Name
steel decking formwork
Base material
Hot Dipped Galvanized Steel Sheet
Steel Grade
SGCC
Yield strength
Q235 or Q345 Refer to Standards GB/T1591-2008
Thicknes
0.8 -1.5mm(normal 0.8,1.0,1.2)
Zinc coating
60-275g/m2
Wave Height
51mm-76mm
EffectiveWidth
688mm-940mm
Length
0-11.8m
Less than 5.8m load in 20GP
5.8m-11.8m load in 40GP
Packing
Bundle ,water-proof package with steel belt
Delivery time
20 days after confirmation
Following are some of typical profiles available in market:
Closed type galvanized steel floor decking
YXB51-200-600
YXB65-186-558
YXB60-253-760
YXB60-180-540
YXB51-200-600
YXB65-186-558
(2) Opened type galvanized steel floor decking
YX75-230-690
YX75-200-600
YX38-152-915
YX51-305-915
YX76-305-915
YX75-230-690
YX75-200-600
YX51-250-750
YX51-335-1005
YX76-344-688
(3) swallow tail galvanized steel floor decking
YX51-200-600
YX51-190-760
YX51-200-800
YX51-200-600
Advantages:
Greater Durability The steel base product has a Z275-350 zinc-coating mass. It was selected to provide superior corrosion protection in service, directly as a result of increased coating mass. FAMOUS steel is also available with a Z450 coating mass with a 15 year warranty*. Comprehensive shear stud welding tests across a range of base thickness with both coating masses were undertaken to ensure consistent results can be achieved on site.
Unbeatable Strength Steel and concrete composite slabs are lighter and stronger than most conventional slabs. The steel decking provides tensile reinforcement, combining with the compressive strength of the concrete for an all round stronger slab. Steel decking profiles are designed to prevent any longitudinal slip between the steel and concrete in the slab itself, and any transverse movement between the slab and supporting beams.
Greater Savings The weight savings achieved in composite slabs can be passed on to other areas of the design, such as foundations. And because steel decking acts as permanent formwork, it can significantly reduce the need for propping or temporary formwork -saving both time and money.
While FASEC Rebar-truss triangle welded metal decking system adapts rapid construction requirements of the main steel structure and provide fast work procedures. It can save a lot of construction time compared to traditional floor decking system. It can also improve the rigidity of the floor and save the amount of steel and concrete, so as to reduce the project budget.
The Surface embossed increase the bonding of floor deck and concrete, make the floor deck system has high-strength bearing capacity. It is totally fire-proof and can span long without middle propping.
Warmly welcome various clients from International market to enquiry and visit us!
